PVC film calender line includes planetary extruder machine and cooler
Acrylic sheets extrusion production line/ PVC transparent sheet calender machine
1. The screw is designed with special mixing function and high plasticizing capacity.
2. The coat hanger model adopts special double - throttling design, which makes the thickness adjustment of sheet metal more accurate.
3. + / - 1 ℃ temperature control can be precise control of plasticizing process and plate thickness, smoothness.

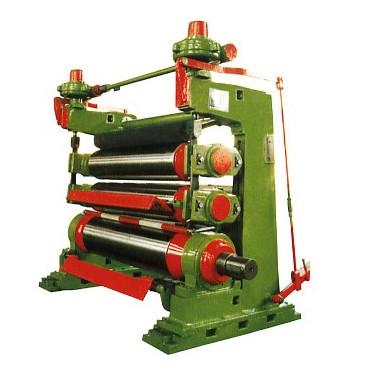

4. The three-roll calender machine adopts horizontal, vertical, or 45 ° tilting, free elevation ways
5. The thickness control of sheet metal is controlled by the screw adjustment and the double adjustment of pressure wheel can precisely control the thickness of the plate.
6. The independent control roller temperature control system can accurately control the temperature of roller wheel to make the sheet metal evenly.
※ slicing machine, sheet length and quantity precision
※ Using the advanced torque motor, it can adjust the speed and winding tension at will.
※ The automatic meter is equipped to set the product length.
Product Usage
1.Vinyl flooring
2. ceiling
3.wall board
4. advertisement panel
5. carving
6. furniture
Pattern: marble, carpet, stones, natural scenery, stereo design, etc, customized pattern.
Function and features: sound insulation, soft, easy to clean, comfortable feet feeling, personalized color and design.
Thickness: 3mm-25mm
Co-extrusion layer: 0.5-1.0mm
Equipment list :
| 1 | Automatic weigh and loading system | | |
| 2 | Hot/cooling mixer | SRL500/1000 | |
| 3 | Mixing material storehouse | 4tons | |
| 4 | Spring type of loader | 700Kg/hr | |
| 5 | Twin screw extruder | SJZ80/156 | |
| 6 | Twin screw extruder | SJZ51/105 | |
| 7 | T-die and calibrating system | 1220mm, 915mm | |
| 8 | PUR glue coating system | | optional |
| 9 | 16 roller haul off unit | | |
| 10 | Automatic cutting with dust suciton | | |
| 11 | Tipping stacker | | |
Usual Products Sizes:
1. Usual sheet width: 915mm, 1220mm
2. Usual sheet thickness: 3mm-25mm
3. length will be common 2440mm, exporting 2200mm for container loading
1.Well designed well made high quality extruder with special use helical gear reducer and high efficiency converter motors, make high speed extrusion, conical double screw for PVC material;
2.Special screw structure, high shear stress and low temperature, ensure high quality plasticization;
3.High precise T-type die head, indepedent oil temperature control chromed 3-roller calender, uniform speed and high traction force NBR roller haul-off machine help making uniform thickness PVC;
4.Whole line with high degree of automation, easy to operate;
5.High quality steel materials, strict producing process make high quality line;
6.New advanced energy saving technology, lowered energy consumption;
7. It can make different design with on line PUR coating and lamination system, it is our advantage.
Specifications
1.High Strength and long life
2.light and good insulation for heat and noise
3.Various designs
4.Easy for installation
Advantage
1. Good heat insulation and noise insulation, energy save
2. Fireproof, waterproof, environmental friendly
3. Easy setting and cleaning
4. Environmentally friendly and stable longevity
5. High strength and small density, very suitable for ceiling and wall decoration.
6. Easy installation, attractive design. Low cost, competitive price
